Silicon Steel

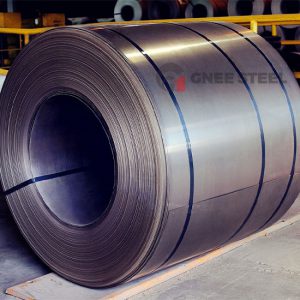

B18R055 orientated silicon steel
Magnetic domain refinement orientated silicon steel is a special electrical steel material with excellent magnetic domain refinement and high orientation. Product Name oriented silicon stee...
DESCRIPTION
Magnetic domain refinement orientated silicon steel is a special electrical steel material with excellent magnetic domain refinement and high orientation.
| Product Name | oriented silicon steel |
| Grade | B18R055 |
| Thickness | 0.18mm |
| Nominal thickness tolerance(mm) | +0.010-0.015 |
| Longitudinal thickness deviation(mm) | +0.0120 |
| Assumed density | 7.65kg/dm3 |
| Length | Coil Or As Required |
| Tensile strength (L) | 369mpa |
| Yield strength (L) | 350mpa |
| Elongation (L) | 13% |
| Surface Treatment | Coated |
| Application | Widely used in Transformer, reactor, mutual inductor, motor. |
High permeability: The excellent permeability of domain-refined B18R055 orientated silicon steel enables them to direct and conduct magnetic flux more efficiently, reducing energy losses.
Optimised domain structure: Through a special process, domain refinement B18R055 orientated silicon steell can form a smaller and more uniform domain structure, thus improving its orientation and magnetic permeability.
FAQ
1.Q: Are you a manufacturers and what is your production capacity?
A: Yes, we are manufacturers. We have our own factory and our owncompany. I believe we will be the most suitable supplier for you.Large scalefactory.
2.Q: How many specifications does the product have and does it supportcustomization?
A: Make most grades and specifications, meet your different requirements.Focus on OEMODM service and customized service, meet differentcustomers’needs.
3.Q: Do you have a quality control system?
A: Yes, we have our own quality control laboratory. Third party testing service is also available.
