Silicon Steel

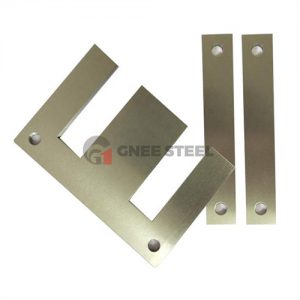

High quality electrical steel silicon steel sheets transformers core
Cut C Cores(CD Cores) can be manufactured outside the physical dimensions of the standard ranges for special applications. It is however,advantageous to utilise the standard ranges whenever practic...
DESCRIPTION
Cut C Cores(CD Cores) can be manufactured outside the physical dimensions of the standard ranges for special applications. It is however,advantageous to utilise the standard ranges whenever practicable to obtain price and delivery advantage.
| SIZE | EI-35 to EI-360 (MONO PHASE)
3PEI-17.5-3PEI-100 (TRIPLE PHASE) |
| THCIKNESS | 0.23-0.35MM (CRGO)
0.35-0.5MM (CRNGO) |
| MATERIAL | M3, M4, M5, M6 (CRGO)
35W250, 35W300, 35W400 (0.35MM) M330-35A 50W250, 50W310, 50W400, 50W470, 50W600, 50W800 (0.5MM) M400-50A 26M19 |
| FREQUENCY | 50HZ-60HZ |
| COATING | T2 Inorganic ( CRGO )
T4 Semi-organic (CRNGO) |
| PROCESS TECHNOLOGY | ANNEALLING & WITHOUT ANNEALLING |
| APPLICATION | CONTROL TRANSFORMER, AUTO TRANSFORMER, ISOLATION TRANSFORMER,
POWER TRANSFORMER; BALLAST, REACTOR,INDUCTOR,INVERTER POWER, VOLTAGE STABILIZERS.etc. |
